Artificial Solar Lighting – XELIOS 100W Series

TOP > Products > Artificial Solar Lighting – XELIOS 100W Series

Artificial Solar Lighting – XELIOS 100W Series

Compact XELIOS designed for small size and low power consumption

lig01

The XELIOS 100W Series of artificial solar lighting is composed of compact models that were developed to meet requests for small size and low power consumption. They maintain basic performance and make XELIOS performance available at low cost.

Specifications

The energy in the ultraviolet and infrared spectrums can be adjusted by filters according to the type of application, and customers can select specifications to meet their application requirements including light with or without UV and IR, degree of diffusion, and intensity.
100w-Specifications2_en

※ Default of color temperature for XG-100CF is 6500K ±10%, for all other models is 5500K ±10%.

Precautions for use

  1. Energy in the ultraviolet and infrared spectrums is adjusted by filters according to the type of application.
  2. Except for the E and EF models, thermic rays are cut by approximately 80%.
  3. Be sure to read the instruction manual before use.。
  4. A super spotlight lighting type can be produced upon request (XG-100ASS, XG-100AFSS, XG-100BSS, XG-100BFSS, XG-100ESS, XG-100EFSS).
  5. Mounting brackets and spare parts are options. Refer to the options section below for details.
  6. Combination part numbers are set for combinations of mounting brackets and lighting lamps. For details, please contact the SERIC Sales Division.
  7. With embedded types, the precautions for installation must be strictly observed.
  8. The service environment is indoors, with a service temperature range of -10 to +30°C.
  9. The color temperature contains error of no more than ±10%.

Spectral distribution

100wbunkou

Light distribution

100W-Light distribution2

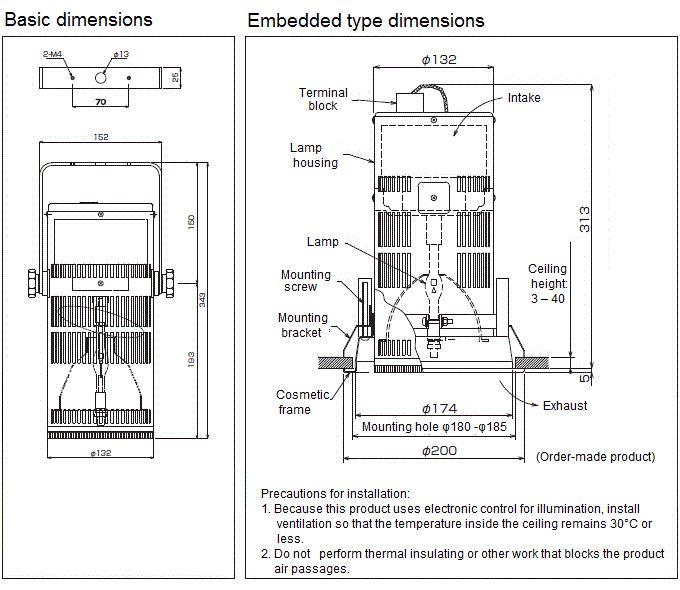

External dimensions

100wsunpo_en

Options

  • 100Wopt2
    Tripod stand
    (for 1 lamp)
    Unit: XG-100*
    Tripod: ST-CO3A
    Combination No.: XELIOS-1*
  • 100Wopt2
    Tripod stand
    (for 2 lamps)
    Unit: XG-100*
    Tripod: ST-CO3B
    Combination No.: XELIOS-1*W
  • 100Wopt3
    Floor stand
    Unit: XG-100*
    Stand: ST-1500C
    Combination No.: XELIOS-2*
  • 100Wopt4
    Floor stand with caster wheels
    Unit: XG-100*
    Stand: STC-1400K
    Combination No.: XELIOS-6*
  • Ceiling flange type
    (mounted on fixed flange)
    Unit: XG-100*
    Ceiling flange: FC-30
    Combination No.: XELIOS-3*
  • Duct plug type
    (connected to lighting duct)
    Unit: XG-100*
    Duct plug: DP-30, DP-175
    Combination No.: XELIOS-4*
  • Lamp
    SET-140F
  • Filters
    A,AF,B,BF,E,EF,CF
  • Power cord
    CSW-3

For the * mark, enter the filter type selected by the customer or other type code. (Examples: XG-100A, XELIOS-1A)

Option specifications

Mounting bracket

Name Tripod stand Suspended type Floor stand Floor stand with caster wheels
For 1 lamp For 2 lamps For 1 lamp For 2 lamps
Model ST-CO3A ST-CO3B ST-10BM-TS ST-10BM-TW ST-1500C STC-1400K
Dimensions
(mm)		 Total height: 1130～2750
  • Irradiated surface height: 550～1250
  • Total height: 1040 – 1700
  • Width: 600
  • Depth: 745
 Total height: 1500 Total height: 1400
Base diameter:φ300 Distance between caster wheels
400×400
Weight
(kg)		 3.2 3.9 18 20 10.3 4.5
Name Ceiling flange Duct plug
Model FC-30 DP-30 DP-175
Dimensions
(mm)		 Pipe length: 30 Pipe length: 30 Pipe length: 175
Flange diameter: φ100
Weight
(kg)		 0.25 0.19 0.26

Mounting bracket

Name Lamp Filter with frame Power cord
Model SET-140F (1)A-3P (2)AF-3P
(3)B-3P (4)BF-3P
(5)E-3P (6)EF-3P
(7)CF-3P 		CSW-3
Specification 100W
Lifetime: 2000H (continuous illumination)
  • (1) Transparent for color evaluation
  • (2)Frosted for color evaluation
  • (3)Transparent for biotech applications
  • (4)Frosted for biotech applications
  • (5)Transparent for solar energy testing
  • (6)Frosted for solar energy testing
  • (7)Frosted for color evaluation with 6500K
 Length: 3m
Includes switch.

Note: Filters are also available individually without frames.
